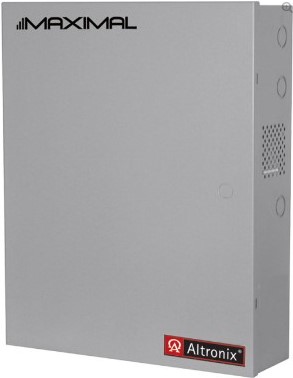

Altronix Power Supply/Chargers, 16 Fused Relay Outputs, Dual 24VDC P/S @ 9.7A each, 115VAC, BC800 Enclosure
AltronixPower and Door Hardware

Altronix Power Supply/Chargers, 16 Fused Relay Outputs, Dual 24VDC P/S @ 9.7A each, 115VAC, BC800 Enclosure

Distributes and switches power. Converts a 115VAC 60Hz input into sixteen (16) independently controlled 24VDC fuse protected outputs. These Fail-Safe/Fail-Secure power outputs may be converted to dry form "C" contacts. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Keypad, Push Button, REX PIR, etc. Units will route power to a variety of access control hardware devices. The FACP Interface enables Emergency Egress, Alarm Monitoring, or trigger other auxiliary devices. Fire alarm disconnect for sixteen (16) outputs.

Part number
ALTX-MAXIMAL77
Availability
Available
$1,876.50MSRP $2,085.00
Add to cartBrowse store

Secure checkout is available for eligible carts. WCS support is available when compatibility, configuration, or fulfillment needs a closer look.

Professional supplyCommercial security products from established manufacturers.
Direct WCS supportCompatibility and ordering help from an experienced security integrator.
Secure checkoutEligible products can move directly to protected online payment.

Product details

Built for professional security work.

Distributes and switches power. Converts a 115VAC 60Hz input into sixteen (16) independently controlled 24VDC fuse protected outputs. These Fail-Safe/Fail-Secure power outputs may be converted to dry form "C" contacts. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Keypad, Push Button, REX PIR, etc. Units will route power to a variety of access control hardware devices. The FACP Interface enables Emergency Egress, Alarm Monitoring, or trigger other auxiliary devices. Fire alarm disconnect for sixteen (16) outputs.
